NEXTFLEX Rapid DNA-Seq Kit 2.0

Higher WGS library yield & conversion across wide input range

The NEXTFLEX Rapid DNA-Seq 2.0 consistently converts a high percentage of mechanically-sheared fragments into adapter-ligated molecules, delivering up to 2 × more final library (nM) than a leading mechanical-ligation kit, even at 1 ng DNA input. The higher conversion translates to a larger pool of unique reads and more uniform coverage in GC-rich regions (≤ 3 % GC-slope).

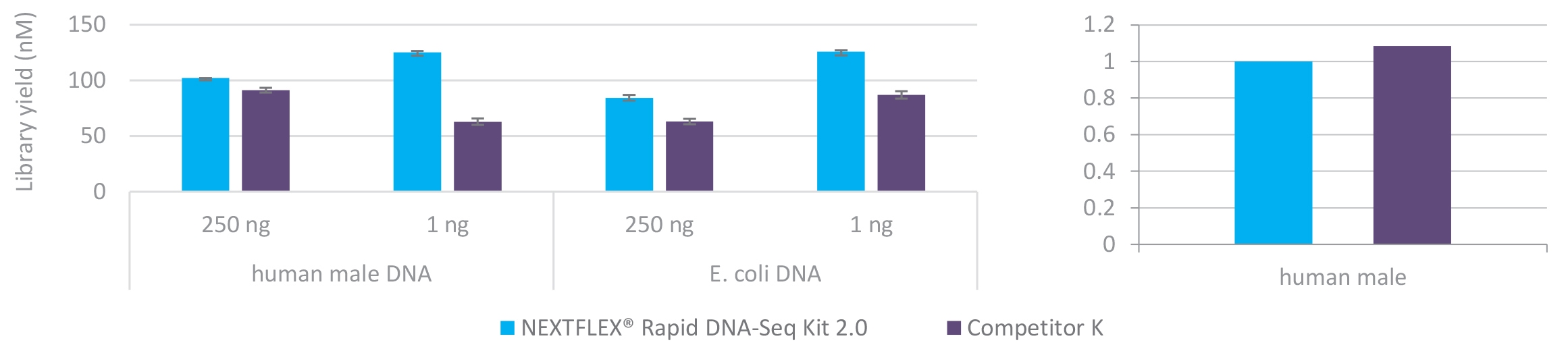

Figure 1. Superior yield and conversion with NEXTFLEX Rapid DNA-Seq 2.0.
(A) Library yield (nM) from 250 ng and 1 ng inputs of human genomic DNA and E. coli DNA; libraries were amplified with identical PCR-cycle counts. NEXTFLEX Rapid DNA-Seq 2.0 (blue) produces substantially higher yields than Competitor K (purple), especially at 1 ng.
(B) Normalised library-conversion rate (ratio of qPCR-quantified library molecules to input fragment count) for 250 ng human DNA shows.

Reduced GC bias delivers more even genome coverage

GC-coverage analysis shows that NEXTFLEX Rapid DNA-Seq 2.0 preserves uniform read depth from 20% to 80% GC, whereas other mechanical-ligation kits lose reads in GC-rich windows. This uniformity translates to near-complete genome coverage at standard sequencing depths, allowing researchers to call SNPs and assemble contigs with confidence, even in regions that are typically under-represented.

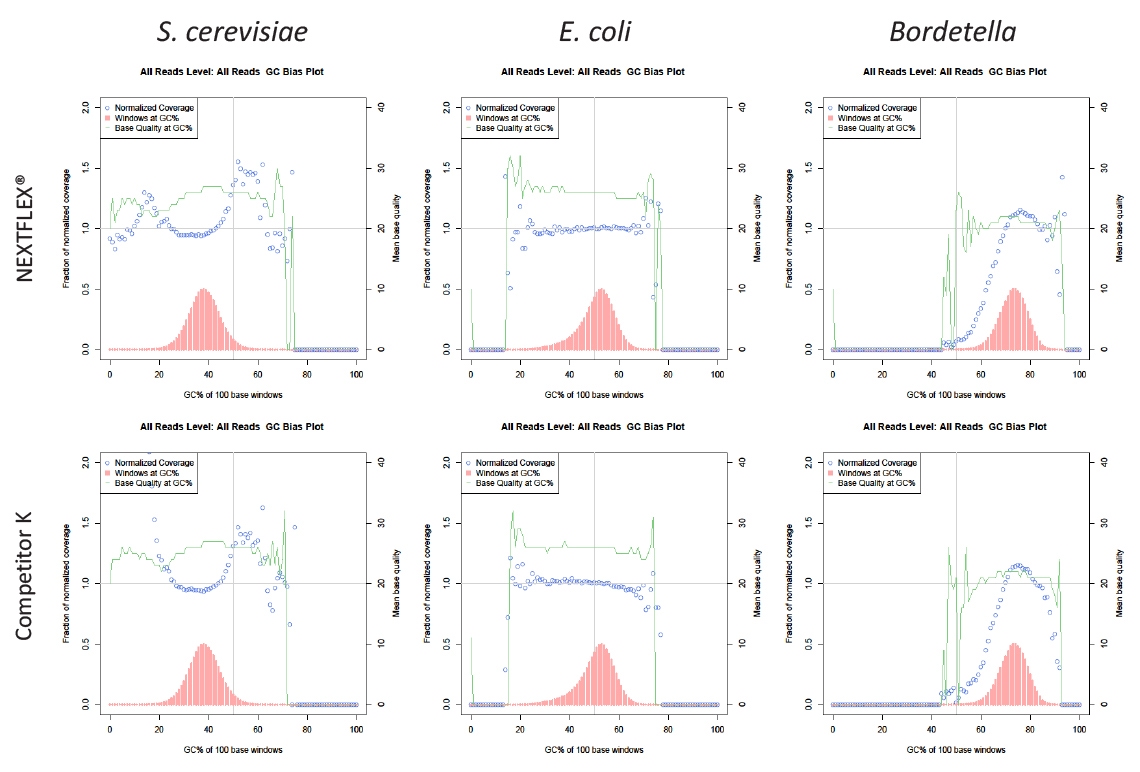

Figure 2: GC-coverage plots show uniform read depth with NEXTFLEX Rapid DNA-Seq 2.0 versus coverage loss in competitor libraries

Greater usable genome coverage at standard sequencing depths

When libraries are sequenced to typical whole-genome depths, NEXTFLEX Rapid DNA-Seq 2.0 delivers a larger proportion of the genome above key coverage thresholds (1X, 5X, 10X) than a leading mechanical-ligation kit.  This higher usable coverage, observed in both yeast and E. coli datasets, reduces the need for additional sequencing reads and improves confidence in downstream SNP discovery, structural-variant calling, and de-novo assembly projects.

Figure 3: At equivalent read depths, libraries prepared with NEXTFLEX Rapid DNA-Seq 2.0 (blue) cover a larger fraction of the yeast and E. coli genomes at ≥ 1X, ≥ 5X and ≥ 10X thresholds than those prepared with Competitor K (purple).  The improved coverage reduces re-sequencing costs and enhances variant-calling accuracy in whole-genome studies.

Flexible Multiplexing Options

The NEXTFLEX Rapid DNA-Seq Kit 2.0 supports high-throughput multiplexing with the full line of NEXTFLEX Adapters  offering:

• Up to 1,536 unique dual-index pairs (8- or 10-bp) to eliminate index hopping and enable large WGS or capture projects
• Single-index and paired-end compatibility for legacy workflows
• UDI-UMI plates (96 pairs) that add unique molecular identifiers for accurate low-frequency variant detection and duplex sequencing
• Color-balanced index sets optimized for Illumina® patterned flow-cells and Element AVITI™ chemistry

Automation Compatibility

The NEXTFLEX Rapid DNA-seq Kit 2.0 is compatible with multiple liquid handlers, including the Revvity Sciclone G3 NGSx and Zephyr G3 NGS workstations.

• Ferrari, G., Esselens, L., Hart, M. L., Janssens, S., Kidner, C., … & von Rintelen, T. (2023). Developing the protocol infrastructure for DNA sequencing natural history collections. Biodiversity Data Journal, 11, e102317. https://doi.org/10.3897/BDJ.11.e102317
• Gaulke, C. A., Schmeltzer, E. R., Dasenko, M., Tyler, B. M., Vega Thurber, R., & Sharpton, T. J. (2021). Evaluation of the effects of library preparation procedure and sample characteristics on the accuracy of metagenomic profiles. mSystems, 6(5), e00440-21. https://doi.org/10.1128/mSystems.00440-21
• Lando, D., Ma, X., Cao, Y., … & Laue, E. D. (2024). Enhancer-promoter interactions are reconfigured through the formation of long-range multiway hubs as mouse ES cells exit pluripotency. Molecular Cell, 84(8), 1406–1421.e8. https://doi.org/10.1016/j.molcel.2024.02.015
• Ma, Y., Schwager, A., Dib, C., … & Ferrer, M. (2024). Exchange of subtelomeric regions between chromosomes 4q and 10q reverts the FSHD genotype and phenotype. Science Advances, 10(18), eadl1922. https://doi.org/10.1126/sciadv.adl1922
