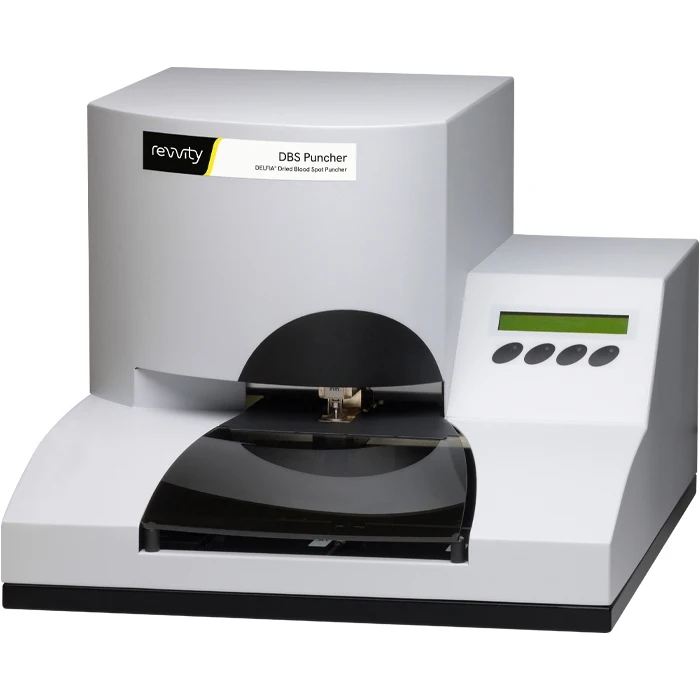

DBS Puncher Instrument

The DBS Puncher has been designed to automatically punch dry blood spot samples into microtitration plates for processing.

Product may not be available in all countries. Confirm availability with your local Revvity representative.

Overview

The DBS Puncher automatically punches dry blood spot samples into microtitration plates. The punch has a changeable head, so the blood spots may be 3.2 mm, 4.7 mm or 6 mm in diameter.

Two plates may be loaded simultaneously and the plate height allowed is adjustable, so deep well plates can be accommodated. After punching, disk detection ensures that the disk is correctly placed in the microtitration well.

The DBS Puncher may be connected to a bar code reader for indentification of the patient sample. It may be run from an external computer, receiving a plate layout which specifies the sample codes for the wells and the punch sequence.

The instrument is controlled by hand or by footswitch. Ease of use is enhanced by a clear double line display, and by illumination of the area being punched.

Additional product information

The DBS Puncher is a versatile, automated instrument for punching dried blood spot samples into 96-well microtitration plates. The instrument supports a wide range of assays employing blood spots as well as other samples dried on filter paper. The DBS Puncher is well-suited for preparing plates for feeding into an automatic immunoassay system.

Punching DBS
dbs puncher
Efficient punching for your laboratory

The DBS Puncher is available as a standalone unit, or configured with a barcode reader and external PC with DBS Workstation software for identification of the patient sample. For process and data management, connection to an external PC also allows the transfer of worklists.

There are four selection buttons for instrument control, and the instrument is operated by hand or by foot-switch. Ease of use is enhanced by a clear double line display, and by illumination of the area being punched.



Laboratory management at your finger tips
Specimen Gate® software

Newborn screening software that provides control and monitoring tools for the entire screening process.

Specimen Gate software is designed to simplify the data collection and workflow processes
involved with receiving specimens, screening for abnormalities, managing patient information, generating specimen reports, and following up abnormal and unsatisfactory specimens.

Learn more

Specimen Gate Software



Specifications

Application
Newborn Screening
Brand
DBS Puncher®
